2008 Macao 112' (34m) Tri-Deck Motor Yacht
To meet the ever increasing demand for new Yacht Designs in excess of 100' YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino Yacht Design, in Buenos Aries, Argentina. As you can see by the preliminary General Arrangements below, the 2008 Macao 112' Tri-Deck Motor Yacht offers modern European Styling, a Great preliminary view to a well thought out Interior Arrangement. We will work closely with owner of this drawing package to provide the best Yacht to suit your Client' needs, offering the maximum opportunity in cosmetic design and equipment selection. This design package will require 8-9 months to complete, offering the buyer maximum imput from a cosmetic design and equipment selection opportunity.

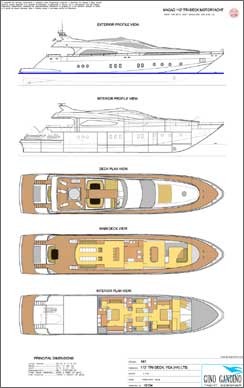

General Arrangements / Specifications
Principal Characteristics
- Length Overall: 34.15 m (112 ft)
- Beam: 6.71 m (22 ft)
- Draft: 2.15 m (7 ft)
- Displacement: 85 ton (187,000 lb.)
- Fresh Water Cap.:2600l (685 US gal.)
- Fuel Capacity: 16000l (4225 US gal.)
General Arrangement
- Accommodation for12-14
- Spacious Galley with Settee and Table
- Formal Dining Room
- Wet Bar / Entertainment Area
- Spacious Saloon
- Master Ensuite Stateroom
- VIP Ensuite Stateroom
- 2 Ensuite
- Guest Staterooms
- Crews Quarters forward
- Spacious Bridge Deck with Pool
- Aft Deck Settee for 8
- Dinghy / Toy Garage
- Huge fold out deck over the Swim Platform
Still in the preliminary design stage, the 2008 Macao 112' Tri-Deck Motor Yacht awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!
For further general information or terms regarding EXCLUSIVE ownership of Macao 112'Tri-Deck Motor Yacht design package, please contact us by e mail or fax.
2008 Shenzhen 107' (33mtr) Tri-Deck Motor Yacht
Sister to the Macao 112', this vessel is also designed by Gino Gandino Yacht Design, of Buenos Aries, Argentina, to meet the ever increasing demand for new Yacht Designs in excess of 100'. In addition, it can fill out your Yacht product line to meet the varying needs of your clients.
As you can see by the preliminary General Arrangements below, the 2008 Shenzhen 107' Tri-Deck Motor Yacht offers modern European Styling, a Great preliminary view to a well thought out Interior Arrangement. We will work closely with owner of this drawing package to provide the best Yacht to suit your Client' needs, offering the maximum opportunity in cosmetic design and equipment selection. This design package will require 8-9 months to complete.
General Arrangements / Specifications
Principal Characteristics
- Length Overall: 32.6 m (107 ft)
- Beam: 6.71 m (22 ft)
- Draft: 2.15 m (7 ft)
- Displacement: 85 ton (187,000 lb.)
- Fresh Water Cap.:2600l (685 US gal.)
- Fuel Capacity: 16000l (4225 US gal.)
General Arrangement
- Accommodation for 12-14
- Spacious Galley with Settee and Table
- Formal Dining Room
- Wet Bar / Entertainment Area
- Spacious Saloon
- Master Ensuite Stateroom
- VIP Ensuite Stateroom
- 2 Ensuite
- Guest Staterooms
- Crews Quarters forward
- Spacious Bridge Deck with Pool
- Aft Deck Settee for 8
- Dinghy / Toy Garage
- Huge "fold out" deck over the already spacious Swim Platform
Still in the design stage, the 2008 Shenzhen Tri-Deck Motor Yacht awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!
For further general information or terms regarding EXCLUSIVE ownership of Shenzhen 107'Tri-Deck Motor Yacht design package, please contact us by e mail or fax.
The 2008 Marco Polo 85' (26.15 meter) FRP Motor Yacht.
As a collaborative effort between Yacht Consultants Asia (HK) Ltd. and Gino Gandino Yacht Designer, we offer a complete Yacht design package, designed and engineered to RINA Standard.
This "turnkey" design and engineering package, represents a valuable opportunity to any yacht manufacturing company or individual, seriously interested in developing or increasing a high quality YACHT product line.
The package is available now, allowing you to start marketing, estimating, procurement and production immediately.
This Design Package Includes
- Sleek Italian styling combined with high performance.
- Length Overall: 26.15 m (85ft 10 in)
- Beam: 6.47m (21ft 3 in)
- Draught (Freeboard to Deck): 2.81 m (9ft 3 in)
- Draft: 1.45m (4ft 9in)
- Displacement: 62.2 t (137000 lb)
- Fresh Water Capacity: 2560 L (676 US gals)
- Grey Water Capacity: 2050 L (541 US gals)
- Fuel Capacity: 7800 L (2060 US gals)
- Engine Option 1 (as drawn): Twin MTU 1150 HP Speed: 23 Knots
- Engine Option 2 (as drawn): Twin MTU 1300 HP Speed: 25 Knots
- Designed for Twin MTU or MAN Engines or optional modification for CAT.
- Over 145 AutoCAD Drawings available on CD-Rom, ready for your plotter.
- .9 meter (1:24) scale, professionally built FRP Yacht Model included.
- Marketing Renderings included.
- EXCLUSIVE ownership of this design is available, as an Option.
- Ongoing support from Yacht Consultants Asia (HK) Ltd and Gino Gandino Yacht Designer is available, as an Option.
To download Marco Polo 85 Motor Yacht Microsoft PowerPoint Presentation click here..
Please be patient while downloading...
English Download
中文版下载
The Orient Express 58' Fly Bridge Motor Yacht
YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino's Design Team, in Buenos Aries. As you can see by the preliminary General Arrangements and Renderings below, the Orient Express 58' design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will "fast forward" your production and Marketing abilities.
This design package will require 6-7 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.
General Arrangements / Specifications
Principal Characteristics
- Length Overall: 17.50 m (57ft 5inch)
- Beam: 4.85 m (15ft 9inch)
- Draft: 1.28 m (4ft 3inch)
- Displacement: 26 ton (5,270 lb.)
- Fresh Water Cap.: 700l (185US gal.)
- Fuel Capacity: 2800l (740 US gal.)
- Engines: Twin Volvo Penta D- 12
- Bow Thruster
Important Features
- Staterooms: 3 plus Crew
- Heads: 3 ensuite with showers
- Crew's Qtrs: Aft with w/c
- Modern Galley with upper cabinetry
- Forward deck Sun tanning Bed
- Big Cockpit with Settee for 6
- Roomy Fly Bridge with seating for 10
- Fly Bridge Wet Bar and Nav.Station
- Highly Stylized Radar Arch
- Vertical hullside windows
Sample Plug / Mould Setup Renderings:
Sample Hull Form Renderings:
Still in the design stage, the Orient Express 58' awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!
This design package can be completed and ready for Yacht production within 6-7 months.
For further general information or terms regarding EXCLUSIVE ownership of Orient Express 58' Fly Bridge Motor Yacht design package, please contact us by e mail or fax.
The SanYa 55' Fly Bridge Motor Yacht
YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino's Design Team, in Buenos Aries. As you can see by the preliminary General Arrangements and Renderings below, the SanYa 55' design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will "fast forward" your production and Marketing abilities.
This design package will require 1-2 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.
General Arrangements / Specifications
Principal Characteristics
- Length Overall: 16.75 m (55ft 0inch)
- Beam: 4.75 m (15ft 7inch)
- Draft: 1.35 m (4ft 5inch)
- Displacement: 24 ton (52.865 lb.)
- Fresh Water Cap.: 650l (170US gal.)
- Fuel Capacity: 2500l (660 US gal.)
- Engines: Volvo D- 12 715HP
Important Features
- Staterooms: 3 plus Crew
- Heads: 3 ensuite with showers
- Crew's Qtrs: Aft with w/c
- Modern Galley with upper cabinetry
- Forward deck Sun tanning Bed
- Big Cockpit with Settee for 6
- Roomy Fly Bridge with seating for 10
- Fly Bridge Wet Bar and Nav.Station
- Highly Stylized Radar Arch
- Vertical hullside windows
Exterior Rendering Samples
Interior Sample Renderings
Sample of Structure Drawings
Still in the design stage, the SanYa 55' awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!
This base design package can be completed and ready to start Yacht production within 1-2 months.
For further general information or terms regarding EXCLUSIVE ownership of SanYa 55' Fly Bridge Motor Yacht design package, please contact us by e mail or fax.

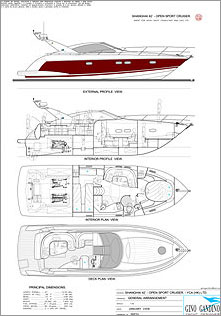

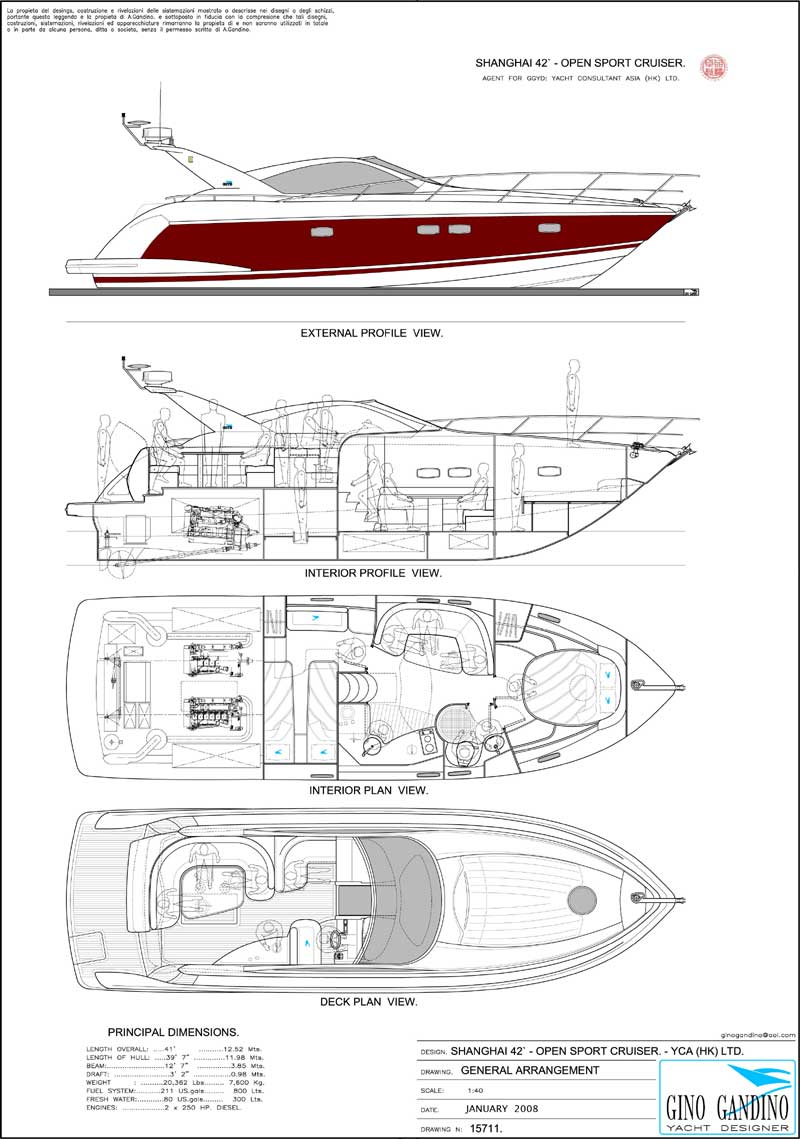

The 2008 Shanghai 42' (12.52 meter) Open Sports Cruiser.
This Gino Gandino Yacht Design / Yacht Consultants Asia (HK) Ltd. complete design package is professionally designed and engineered for Euro styling and optimum "tunnel hull" performance.
As with our other "turnkey" design and engineering packages, it represents a valuable opportunity to any yacht manufacturing company or individual, seriously interested in developing or increasing a high quality YACHT product line. The total design has just been completed and available now, allowing marketing, estimating, procurement and production to start immediately.
Principal Characteristics
- Sleek Italian styling combined with high performance.
- Length Overall: 12.52m (41ft)
- Beam: 3.85m (12ft 2 in)
- Draft: 0.98m (3ft 2 in)
- Weight: 7600kg. (20362 lb)
- Fresh Water Capacity: 300 L (80 US gals)
- Fuel Capacity: 800 L (211 US gals)
- Engine Option 1(as drawn): 2 X 300 HP.Diesel
- Speed: 35 Knots
- Engine Option 2 (as drawn): 2 X IPS 450
- Speed: 37 Knots
- AutoCAD and Rhino Drawings are available on CD-Rom, ready for your plotter.
- .65 meter (1:19) scale, professionally built FRP Yacht Model included.
- High quality marketing Renderings are included.
- EXCLUSIVE ownership of this design is available, as an Option.
- Ongoing support from Yacht Consultants Asia (HK) Ltd and Gino Gandino Yacht Designer is available, as an Option.
Please contact us for a Microsoft Power Point Presentation of the Shanghai 42' Open Sports Cruiser, available in English or Chinese.
2008 Zhuhai 40' Express Cruiser
We are pleased to offer this new design by Gino Gandino Yacht Design, from Buenos Aries, Argentina. As you can see by the optional preliminary General Arrangements and renderings below, the 2008 Zhuhai 40' Express Cruiser offers highly desirable modern European Styling, well thought out interior arrangement, and exterior planning.
This original design package will require 4-5 months to complete, offering the buyer maximum input from a cosmetic design and equipment selection opportunity.

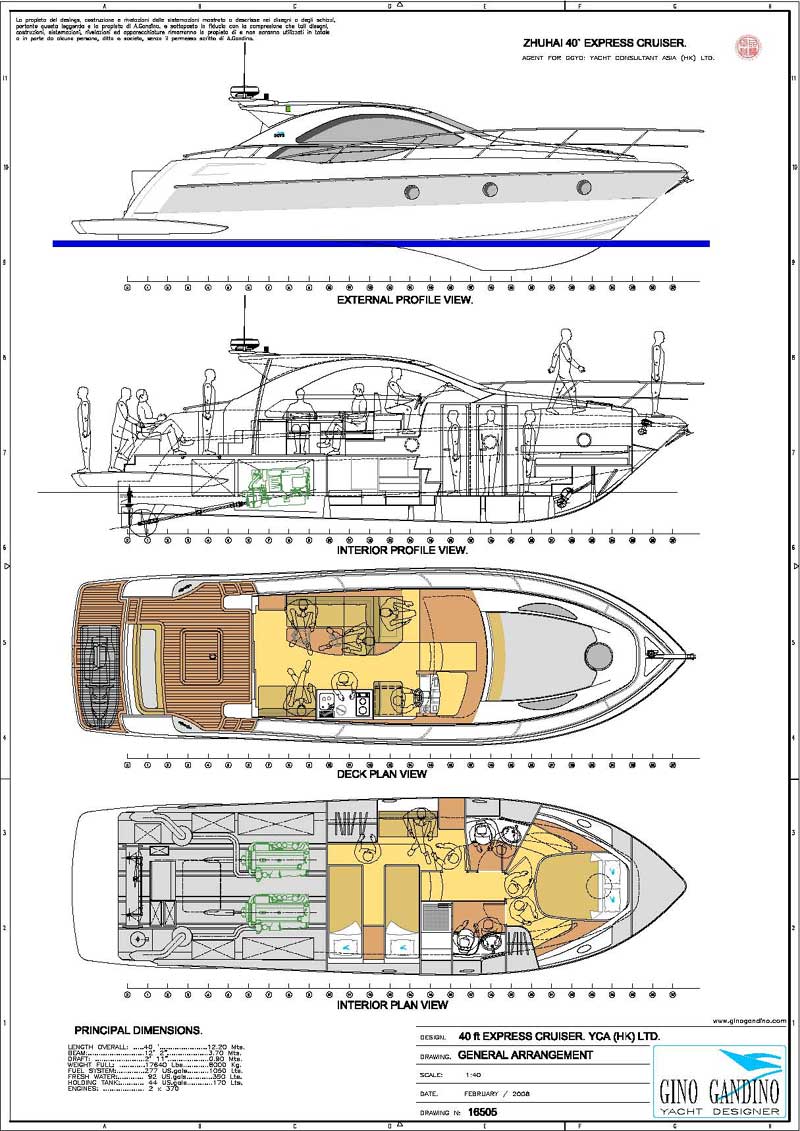

General Arrangements
Option 1
Click to make larger
Option 2
Click to make larger
Principal Characteristics:
- Length Overall: 42' (12.9m)
- Length of Hull: 40' (11.95m)
- Beam: 12' 2'' (3.7m)
- Draft: 2' 11'' (0.9m)
- Weight Full: 20000lbs (9000kg)
- Fuel System: 277 US. Gals (1050 lts.)
- Fresh Water: 92 US. Gals (350 lts.)
- Engine Options: 2 X Volvo Penta D6-370 hp
2 X Volvo Penta IPS 500 hp
Sample Renderings:
This design package can be completed and ready for Yacht production within 4-5 months.
For further general information or terms regarding
EXCLUSIVE ownership of the
2008 Zhuhai 40' Express Cruiser design package, please
contact us by e mail or fax.

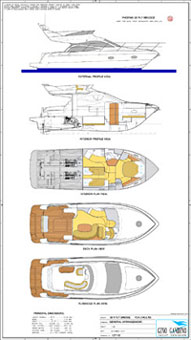

The 2008 Phoenix 38' (11.35 meter ) Fly Bridge.
As a collaborative effort between Yacht Consultants Asia (HK) Ltd. and Gino Gandino Yacht Design, we are offering this completed Yacht design package, designed and engineered to a high standard.
This "turnkey" design and engineering package, represents a valuable opportunity to any yacht manufacturing company or individual, seriously interested in developing or increasing a high quality YACHT product line.
This drawing package will allow you to start marketing, estimating, procurement and production immediately.
This Design Package / Specifications
- Length Overall: 11.35 m (37 ft 3 in).
- Beam: 3.75m (12 ft)
- Draft: 0.9m (2ft 8in)
- Weight (full): 10t (22046 lbs)
- Fresh Water Capacity: 281 L (75 US gals)
- Holding Tank Capacity: 107 L (28 US gals)
- Fuel Capacity: 840 L (220 US gals)
- Engine : 2 x 330 HP Cummins Diesel
- Over 60 AutoCAD Drawings available on CD-Rom, ready for your plotter.
- (1:15) scale, professionally built FRP Yacht Model included.
- Marketing Renderings included.
- Optional "Open Deck" arrangement available at extra cost.
- EXCLUSIVE ownership of this design is available, as an Option.
- Ongoing Marketing, Technical and Production support from Yacht Consultants Asia (HK) Ltd and Gino Gandino Yacht Designer is available, as an Option.
To download Phoenix 38 Fly Bridge Motor Yacht Microsoft PowerPoint Presentation click here..
Please be patient while downloading...
English Download
中文版下载
The 2008 Geisha 28' (8.68 meter) Sport Cruiser.
As a collaborative effort between Yacht Consultants Asia (HK) Ltd.
and Gino Gandino Yacht Design, we are offering this completed Yacht design package, designed and engineered to a high standard.
This "turnkey" design and engineering package, represents a valuable opportunity to any yacht manufacturing company or individual, seriously interested in developing or increasing a high quality YACHT product line.
This drawing package will allow you to start marketing, estimating, procurement and production immediately.
Design Package / Specifications
- Length Overall: 8.68 m (28ft)
- Length of Hull: 7.60m
- Length Water Line: 6.15m
- Maximum Beam: 2.57m
- Displacement (Full Load): 3350kg
- Fuel Capacity: 420 L
- Fresh Water Capacity: 104L
- Over 75 AutoCAD Drawings available on CD-Rom, ready for your plotter.
- Professionally built FRP Yacht Model (Scale 1:13) included.
- Several high quality renderings, ready for marketing are included.
- EXCLUSIVE ownership of this design is available, as an Option.
- Ongoing Marketing, Technical and Production support from Yacht Consultants Asia (HK) Ltd and Gino Gandino Yacht Designer is available, as an Option.
To download The 2008 Geisha 28’ (8.68 meter) Sport Cruiser Microsoft PowerPoint Presentation click here..
Please be patient while downloading...
English Download
中文版下载
